S.W.A.T Welder

ANALOG CONTROLS

  • check
    BIG 70 LB TRANSFORMER
  • check
    TITE-SPOT PLIERS
  • check
    COOL CORDS
  • check
    SUPER UTILITY KIT
  • check
    TRAINING VIDEO
  • 50' Power Cord
  • 8" Diameter Wheels
  • 4" Diameter Front Casters
  • Extended Wheelbase
  • Stainless Cable Brackets
  • Instructions on Front Panel
  • Tall Easy Push Handle
  • 16 Gauge Steel Case
  • Red and White Fanish
  • 5 Year Transformer Warranty
  • 5 Year Electronics Warranty
  • 1 Year Cool Cords Warranty
  • 1 Year TITE-SPOT Pliers Warranty
  • Foot Pedal Switch for TITE-SPOT Pliers

JOIN THE S.W.A.T. TEAM

AIR BLOCK TOOL CADDY with

  • Air Control Valve
  • Spare Standard Welding Tips
  • Hi-LO Welding Tips
  • Door Panel Tip
  • Tip Sharpening Tool

3 PROFITABLE REASONS TO OWN A DiGi S.W.A.T.

SPEED

  • More than 80% of welding can be done with a DiGi S.W.A.T.
  • Plus: weld pull studs
  • Plus: heating and shrinking

APPEARANCE

  • Only a Spot Weld looks like a Spot Weld.
  • All the Auto Makers use Spot Welding.

SAFETY

  • Spot Welds are Strong
  • Safest form of welding for vehicle, shop and technician.
    NO SPATTER!

S.W.A.T. WELDER CONTROLS

Power Off-On Switch: With Power-On Indicator Light.

Weld Timer Control: Infinitely Variable 0 to 2 Seconds, plus Manual Mode For The Experienced Technicians.

Weld Power Control: Controls Welding Voltage Between 4 and 10 Volts.
Smooth, Precise, Repeatable Power Control Is A Hallmark Of The S.W.A.T. Welder Power Source

Weld Power Indicator Light:

Washable Decal: Has Complete Instructions Printed On Front Panel.

5 YEAR WARRANTY ON ALL ELECTRONICS

S.W.A.T. WELDER QUALITY DESIGN AND CONSTRUCTION

Mechanical features that make the S.W.A.T. Welder a great value

  • 1

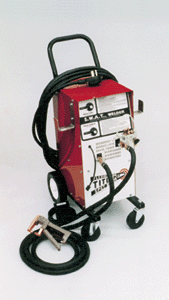

    Red and white 16 gauge steel cabinet, big 8 inch wheels and 4 inch casters, with a stretched wheelbase makes the S.W.A.T. Welder very portable.
  • 2
    Left & right welding cable storage brackets make welding cables easy to wrap up.
  • 3
    Extra tall handle makes the welder easy to push around the shop.
  • 4
    The 50 foot long 10/3 Power Cord makes it easy to reach outlets in the shop without extension cord hassles.
  • 5
    TITE-SPOT Pliers will do 70% to 80% of your welding.
  • 6
    TITE-SPOT Cool Cords will do 5% to 10% of your welding.

BIG 70 POUND TRANSFORMER

BIG 70 POUND TRANSFORMER

The heart of the S.W.A.T. Welder is the extended service transformer. This 10 volt transformer has an extended duty cycle because of its thermal mass (53 pounds of transformer laminate) BIGGER than any competitor. Oversized copper windings (6.5 pounds of #8 square wire on the primary, and 8 pounds of 1 inch by 3/8 inch bar on the secondary) minimize heat-build in heavy-duty use.

TITE-SPOT features a 5-Year Warranty
on this big 70 pound transformer and all the electronics

OUTPUT POWER

  • 4 to 10 Volts – Over 4500 Amps
      Using ANSI Standards

INPUT POWER

  • 208/240 Volt Single Phase – 60 hz
  • 50 Amp Breaker Required
  • Rated 8.7 KVA
  • 50 hz Special Order
  • 480 Volt Special OrderCare must be taken to assure sufficient wiring is in the building. Inadequate wiring can be a safety problem. A 10 percent of voltage drop at the receptacle is unacceptable.

THE BEST QUALITY AT ANY PRICE – PICK THE PACKAGE THAT FITS YOUR NEEDS

S.W.A.T.
Power Source

S.W.A.T.
& TITE-SPOT Pliers

S.W.A.T.& TITE-SPOT
Cool Cords

Complete S.W.A.T.
Welder
